As described on the main page, this cutting board was made from the leftovers of the original larger cutting board. I had found conflicting information about the susceptibility to cracks between thinner and thicker butcher-block constructions so I thought it would be a good idea to try a thinner one as well.
There was just over 6" of laminated wood available so I was able to cut that into six slices that were 1" thick which provided enough area for a decent-sized cutting board.
Since the operations were almost identical to those for the larger board, I just provided captioned photos for this one. Head over to the larger board if you want more details. Right then: no plan, no 3D model - just a shoebox of photos so lets get started.
There was just over 6" of laminated wood available so I was able to cut that into six slices that were 1" thick which provided enough area for a decent-sized cutting board.
Since the operations were almost identical to those for the larger board, I just provided captioned photos for this one. Head over to the larger board if you want more details. Right then: no plan, no 3D model - just a shoebox of photos so lets get started.

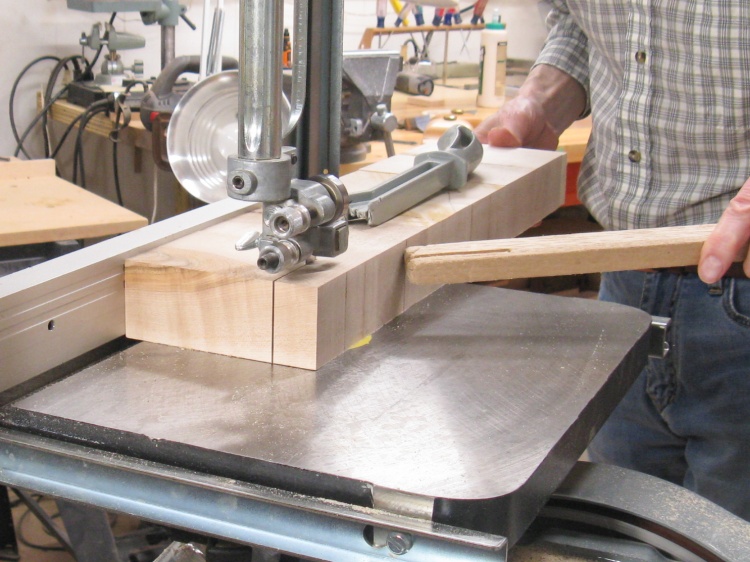

Slicing up the laminated blank

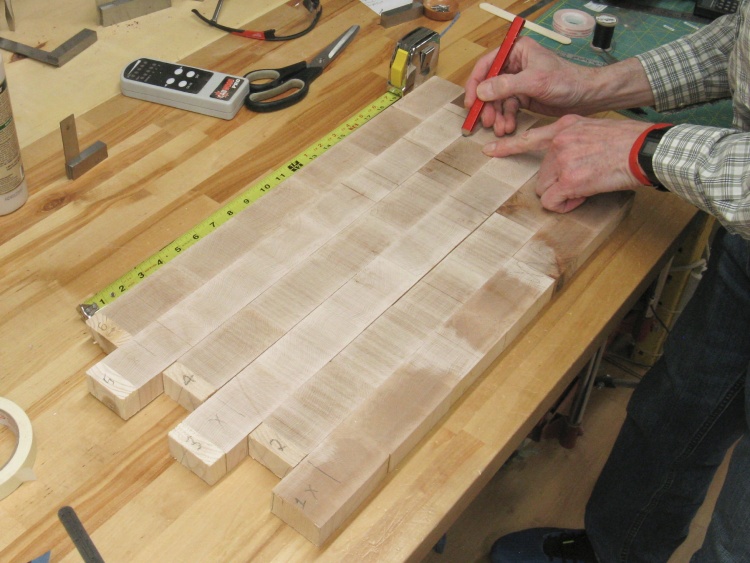

Arranging the slices

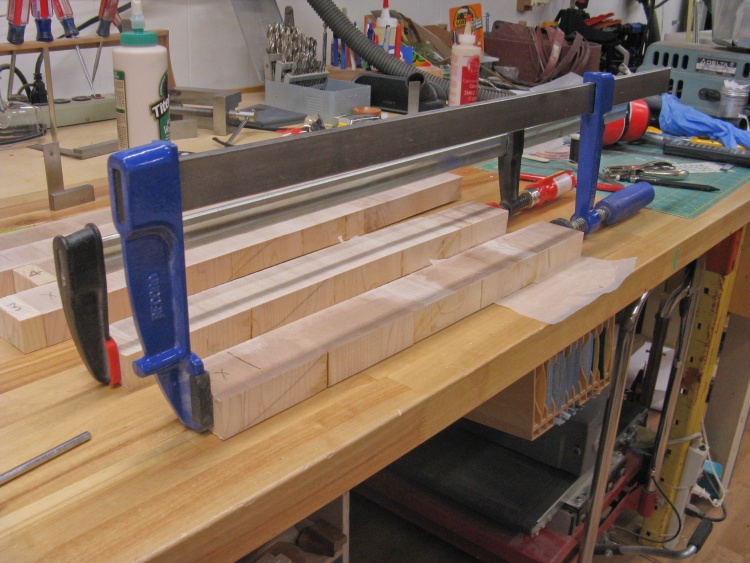

Replacing some knotty sections

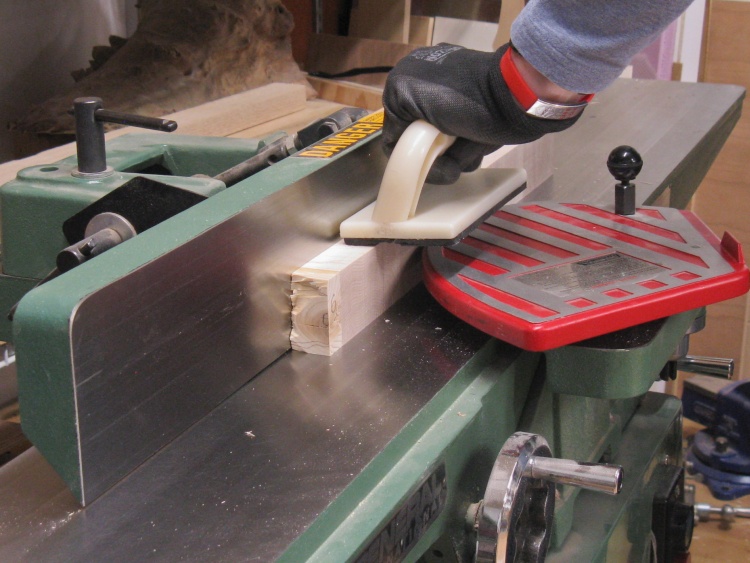

Flattening one side

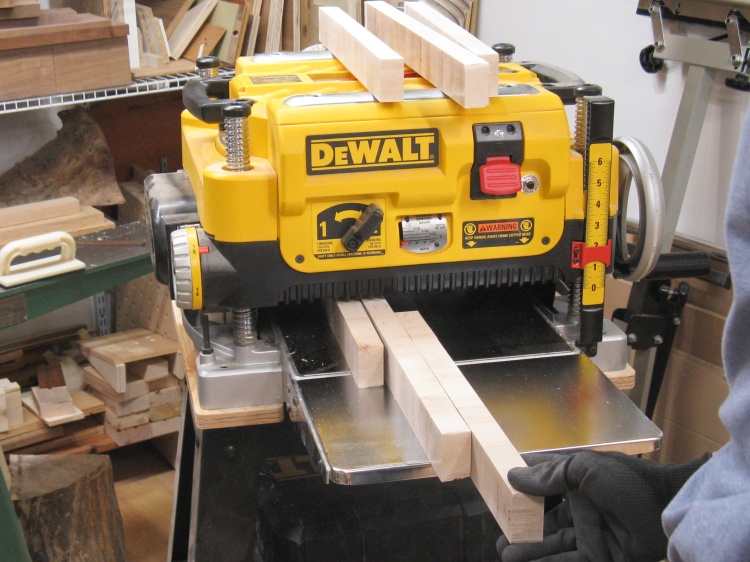

Planing slices to consistent width

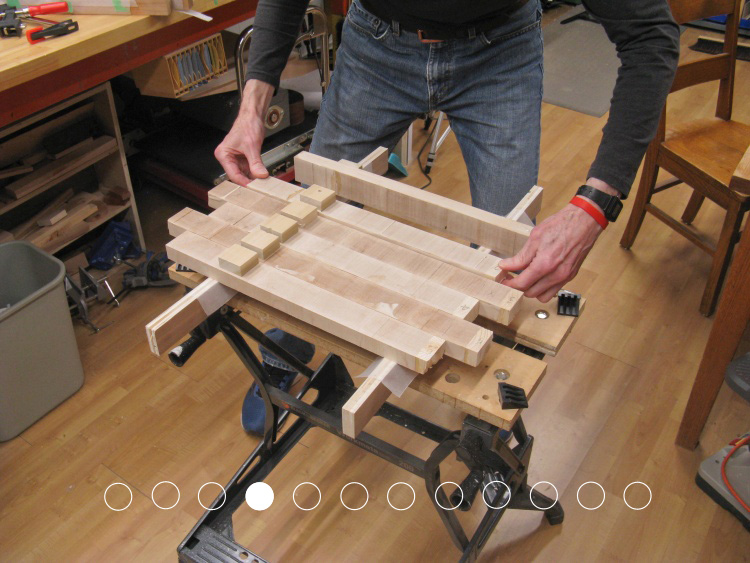

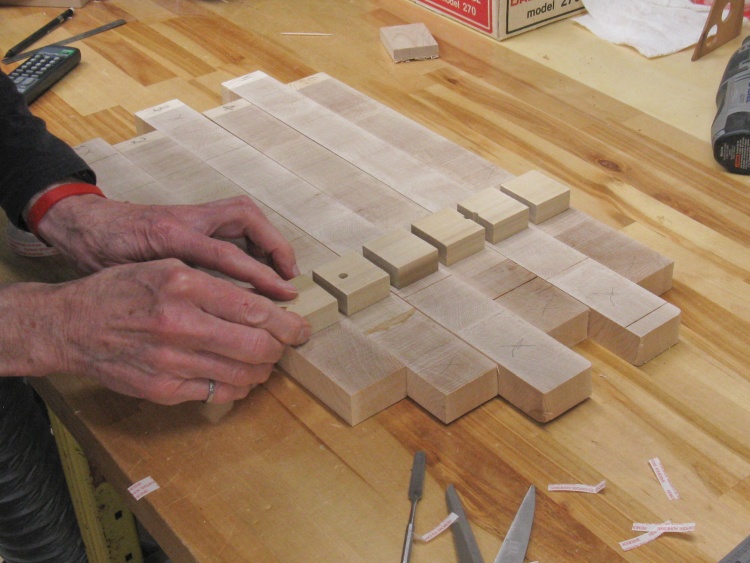

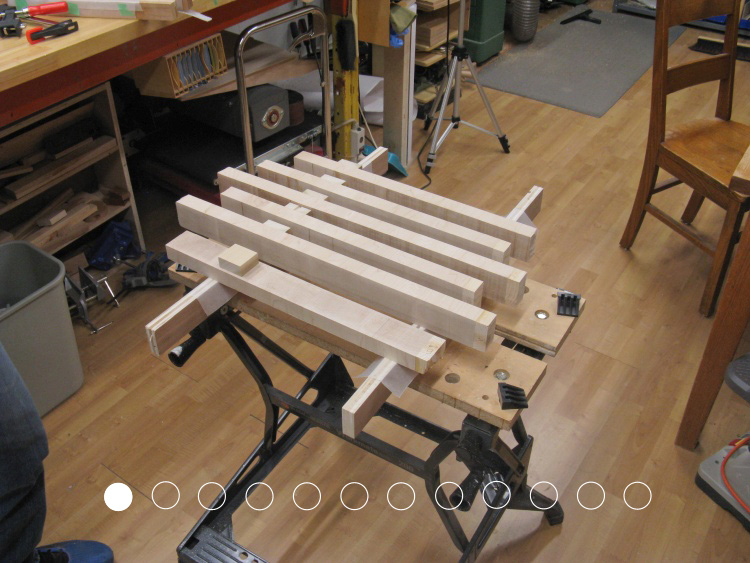

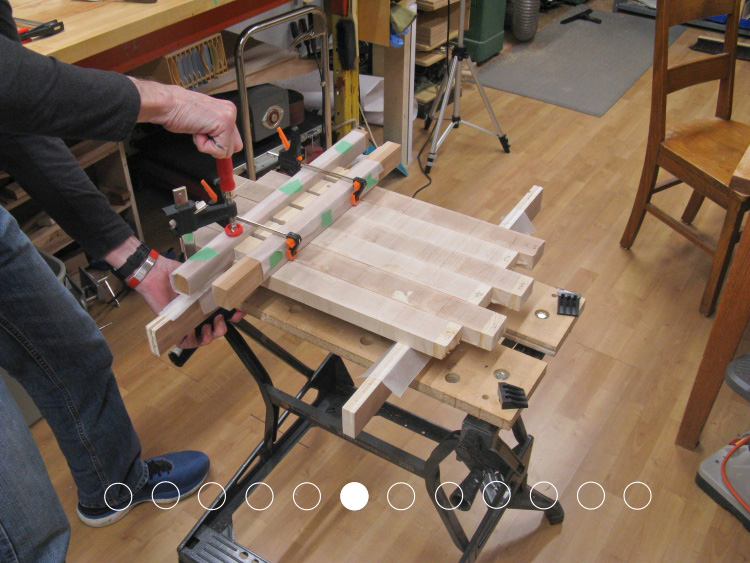

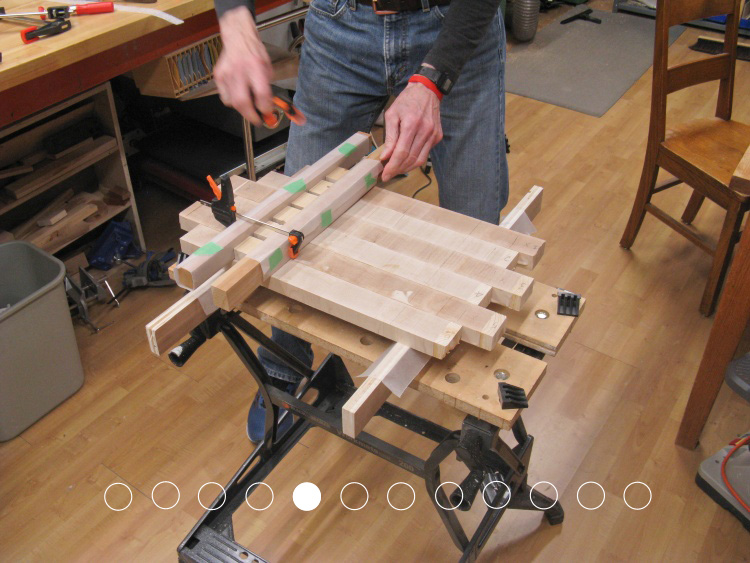

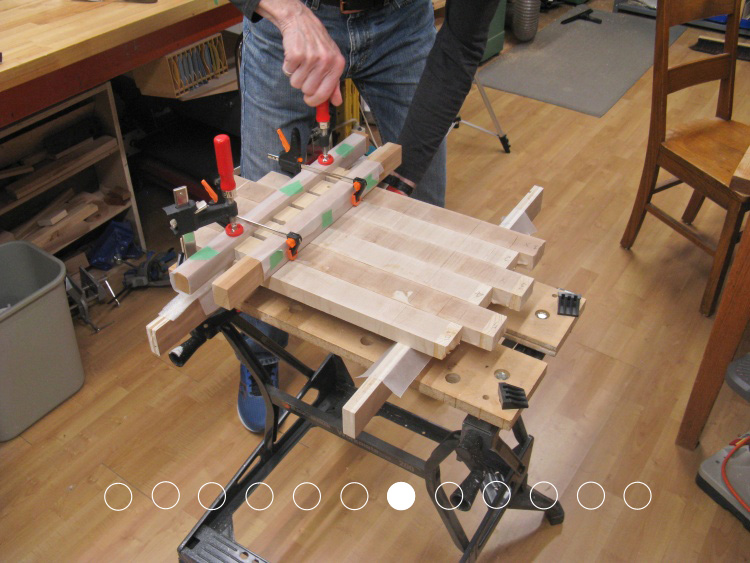

Taping on alignment blocks

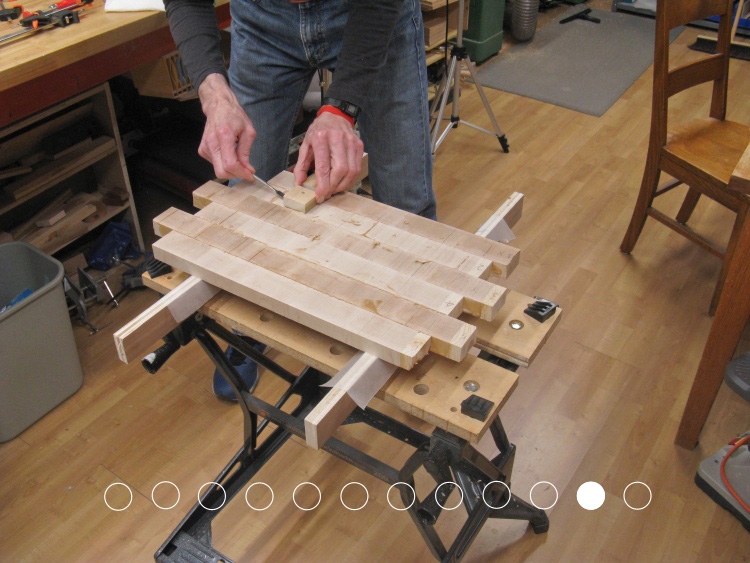

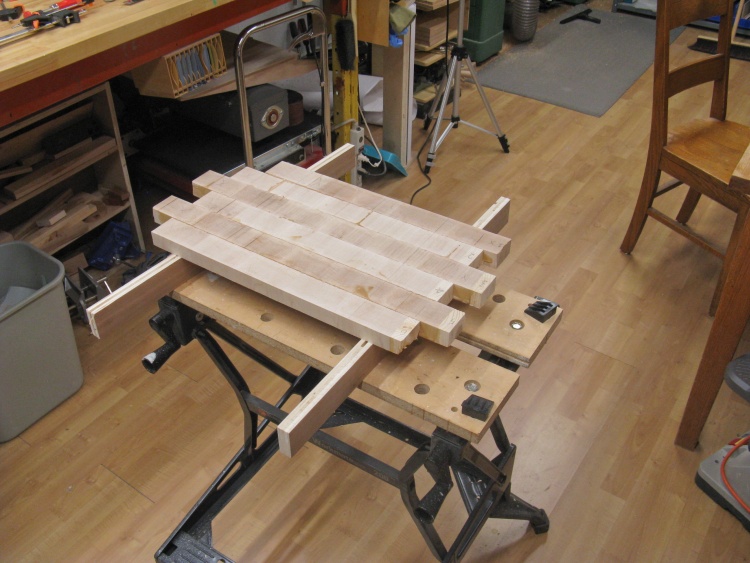

The glued-up piece

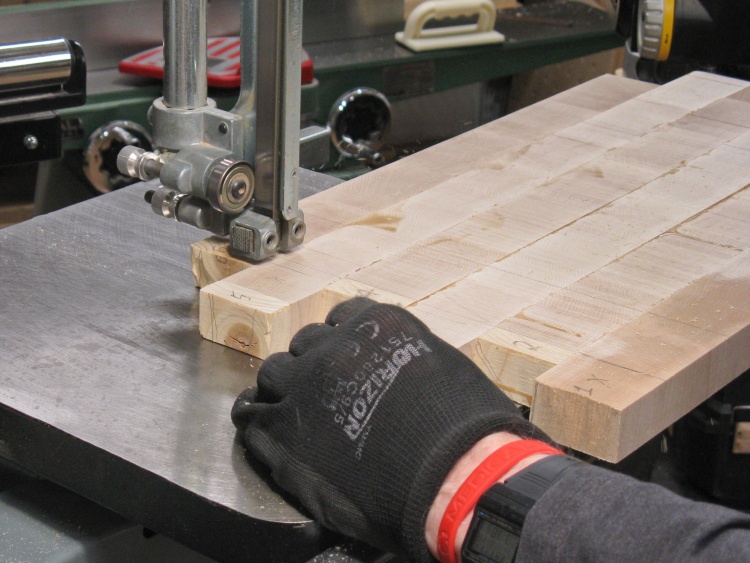

Cutting off the ragged ends

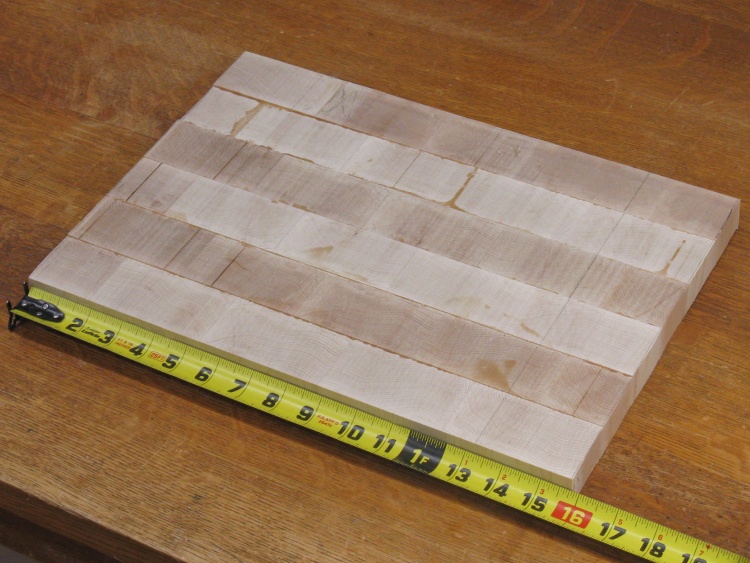

The basic board, ready for sanding

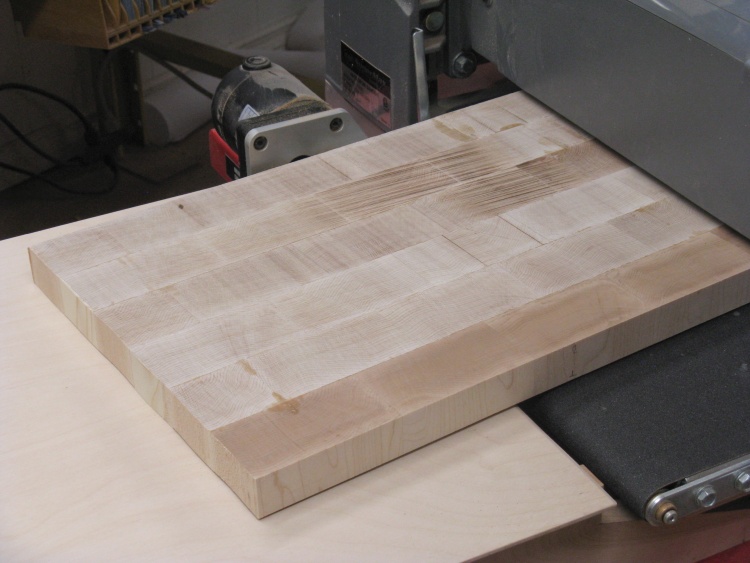

starting on the drum sanding
All slices evened out using the coarse grit

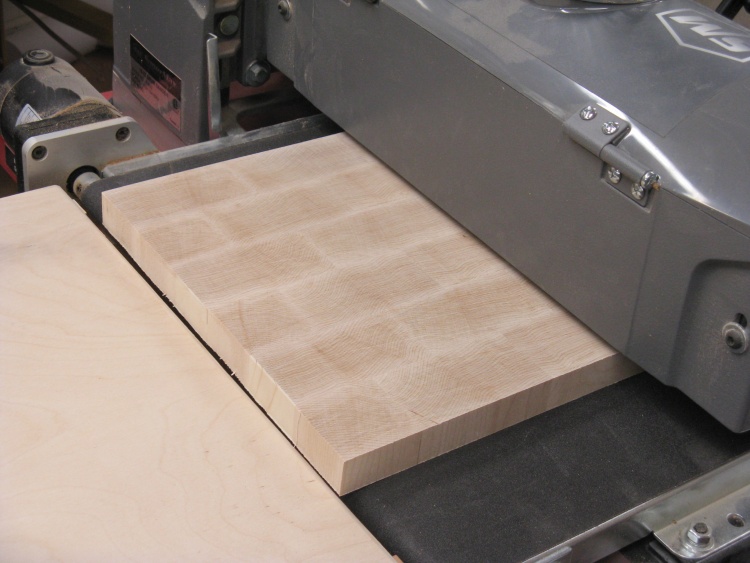

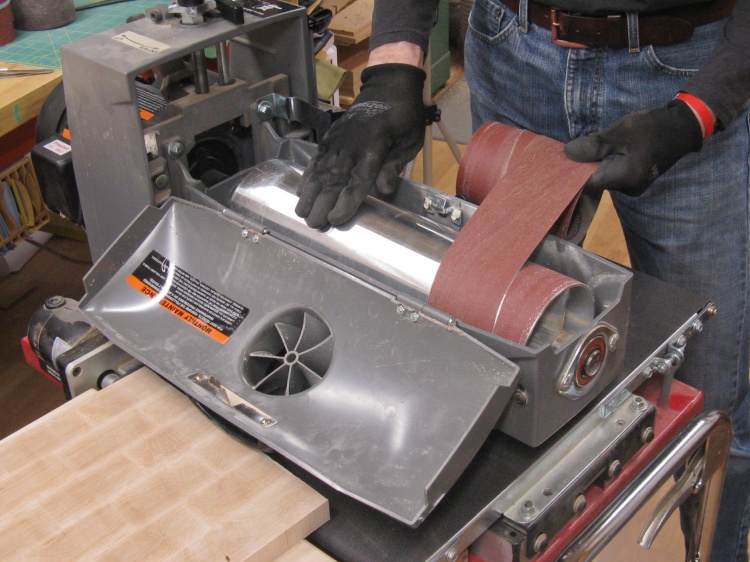

Changing to a finer sandpaper grit

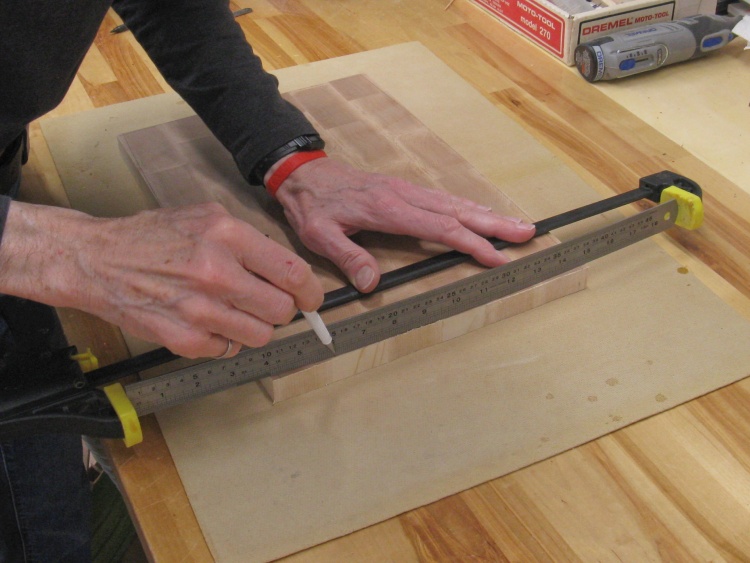

Marking on slightly curved edges

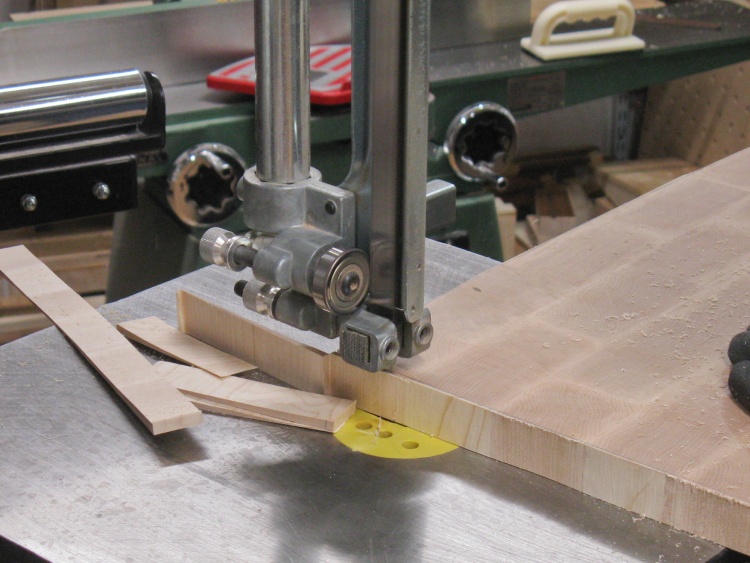

Cutting those curves in the edges

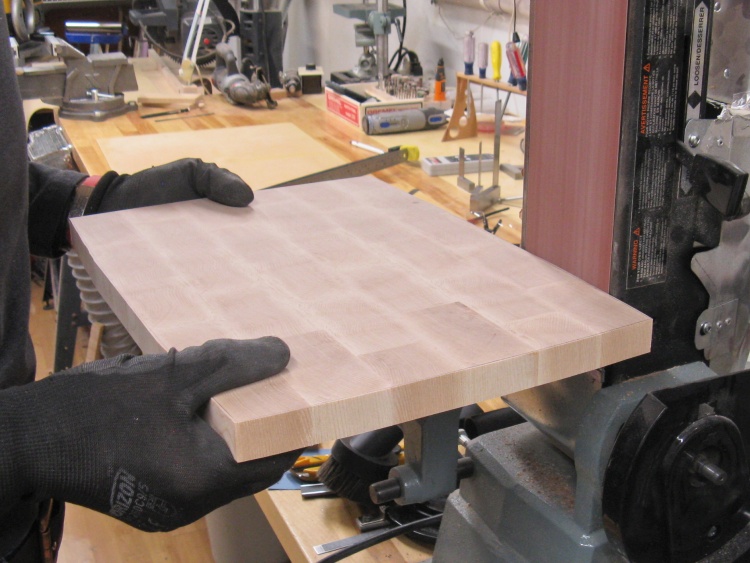

Sanding the edges smooth

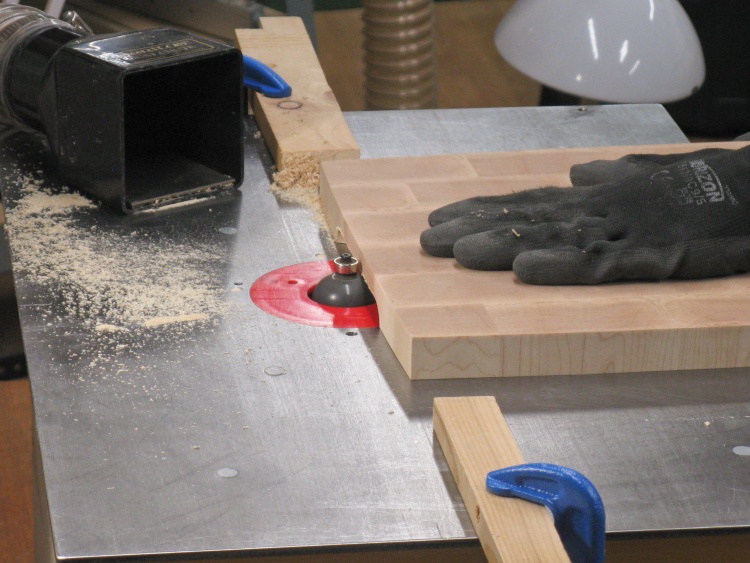

Routing in some finger grips

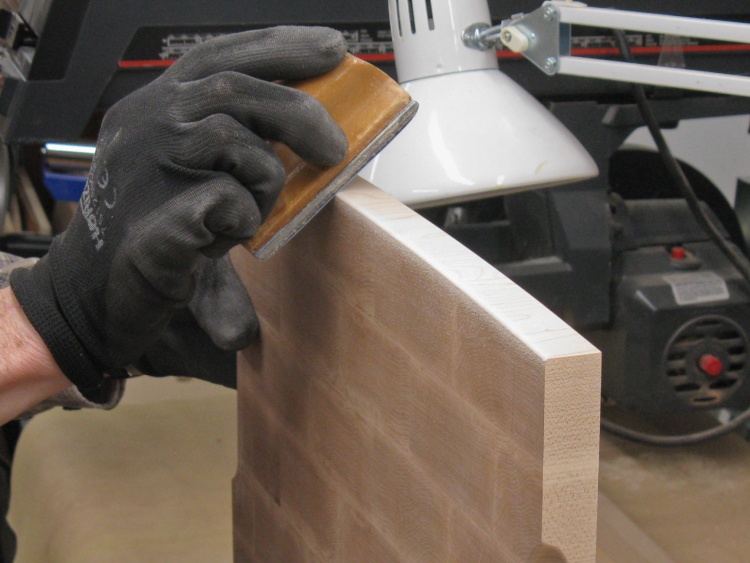

Rounding all the edges

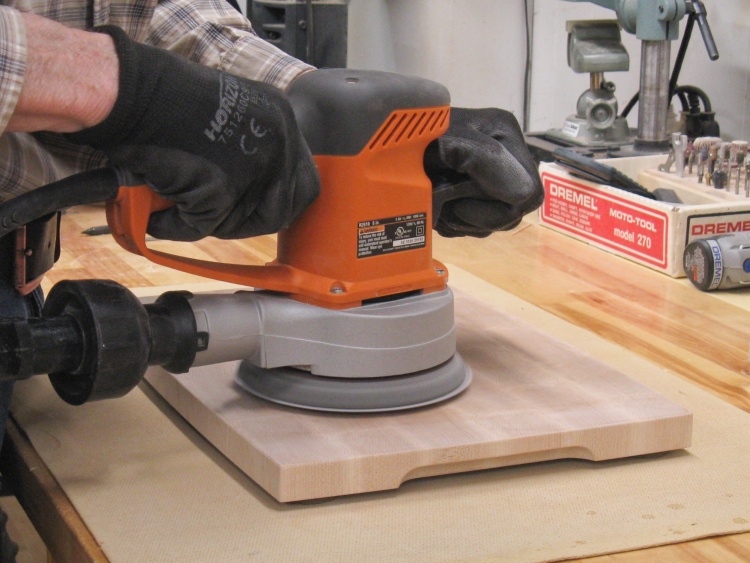

Random-orbital sanding up to 400 grit

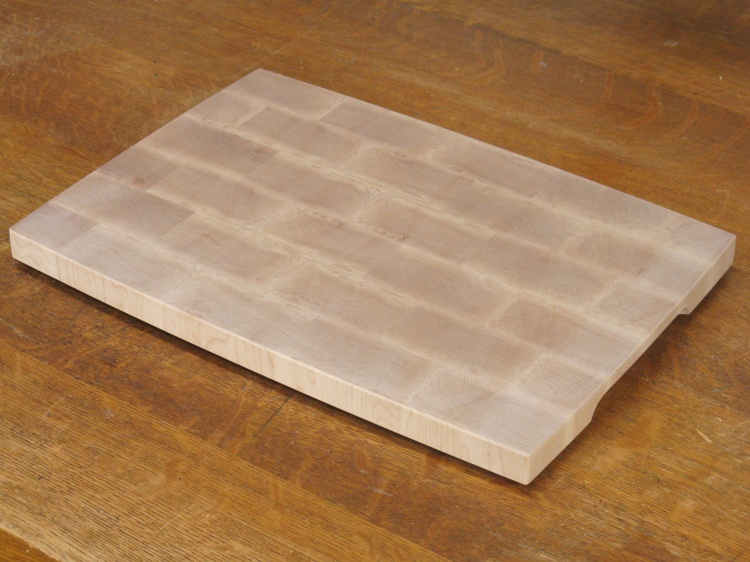

Woodworking done!

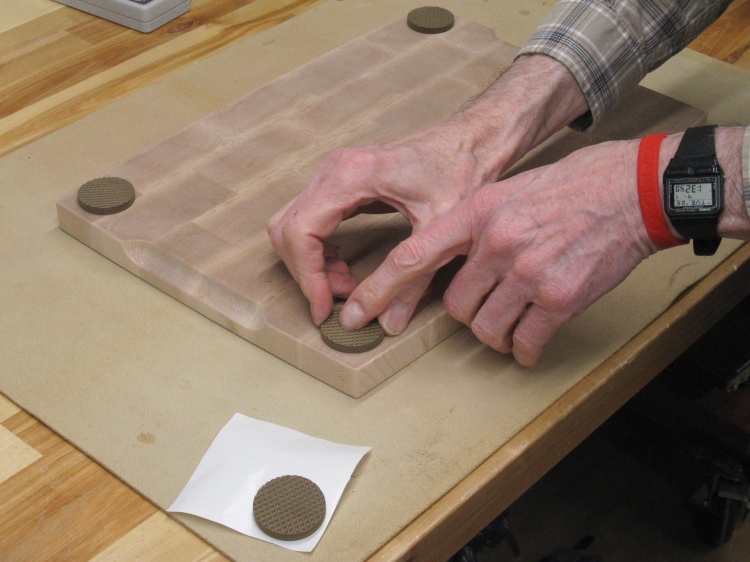

Sticking on some low feet

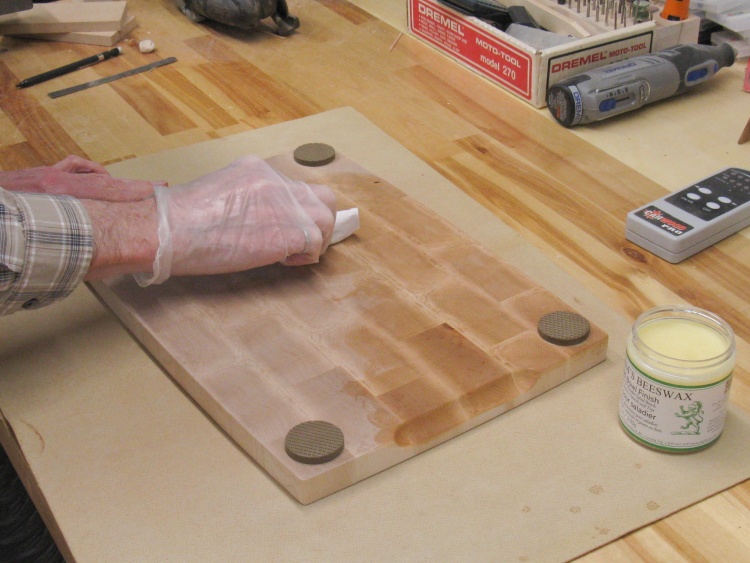

Adding a coat of oil/wax blend

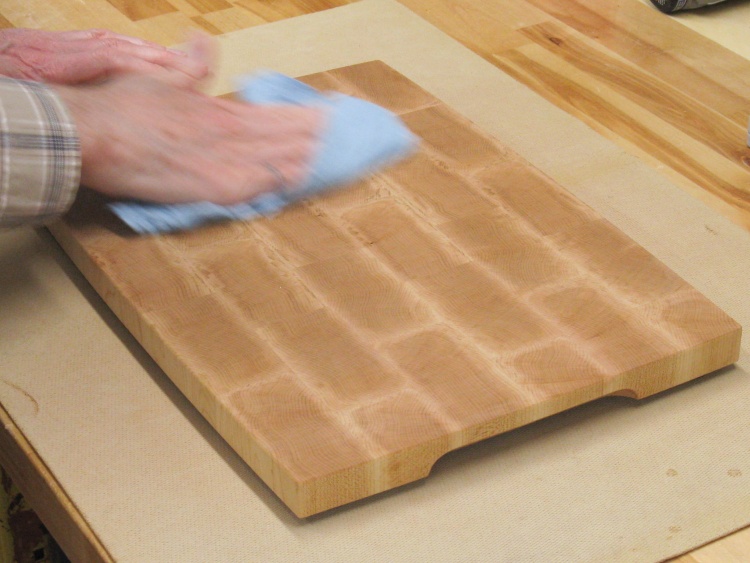

Polishing it up when dry

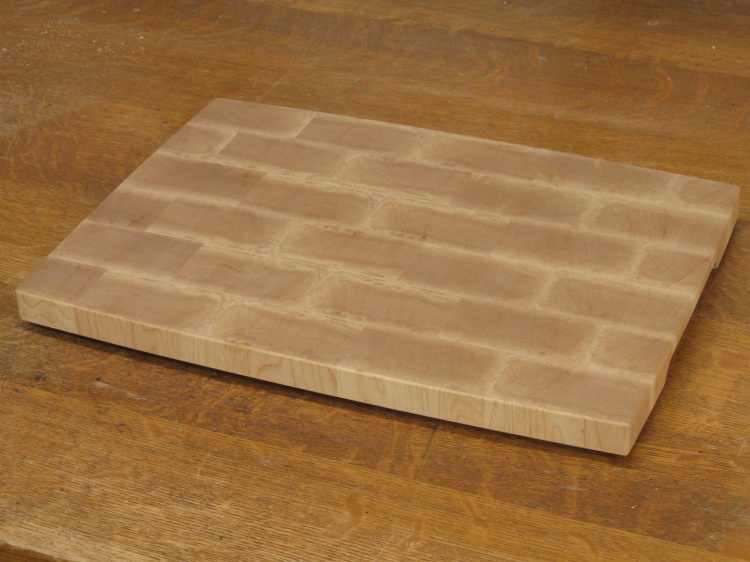

Done

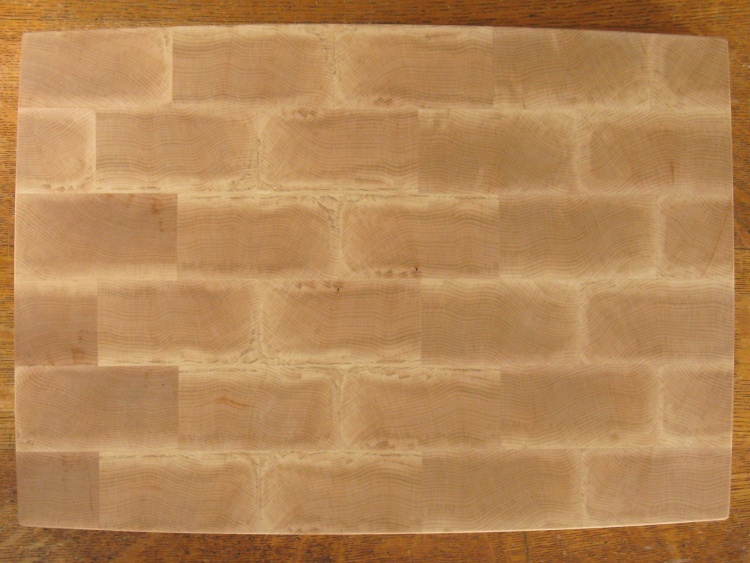

Top view

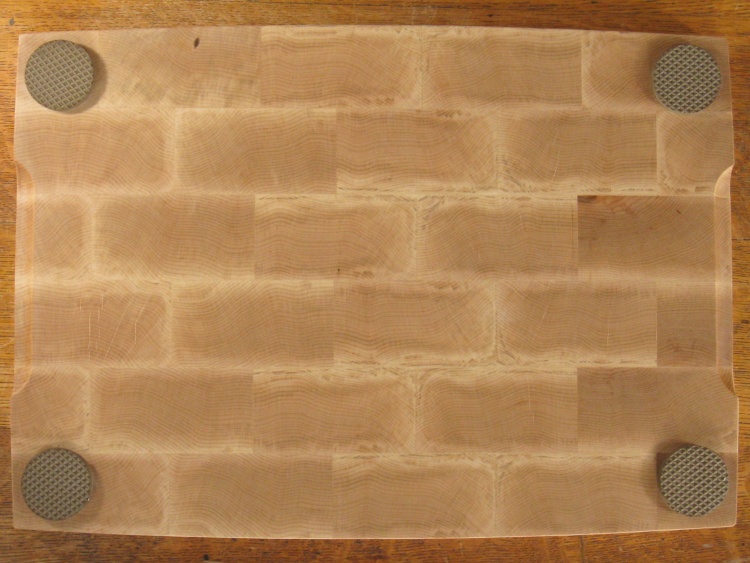

Bottom view
